Providing Switch protection for the worlds rail systems |
||||
 |
|
|
|
|
 |
|||
|
|
||
|
|||
|
|
|
|
 |
|
|
|
Wheel DetectorSystem (WDS) brings presence detection to the next level of performance and ease. |
|
|
|

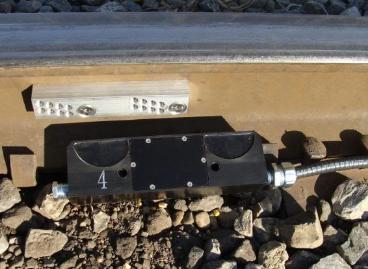

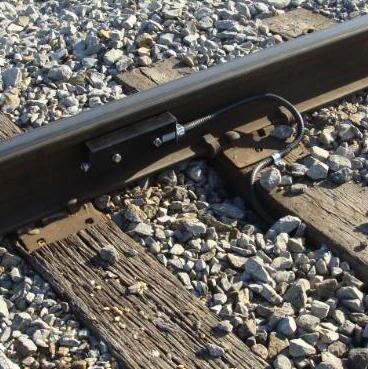

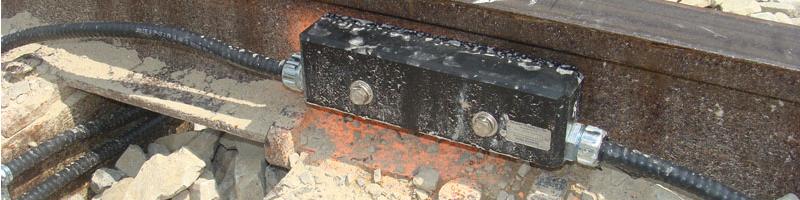

Low Power Requirements 8 to 24 VDC operating voltage range• 120 mA current draw for a 3-Detector system Ease of Installation Only two components, the Main Module and the Sensor/Bracket assembly • Sensor/ Bracket assembly bolts to the base of the rail. Eliminates drilling of the rail. • Sensors can be quickly and easily relocated by unbolting the Bracket and reinstalling in the desired location. • Spring cage connectors for ease of wire connections and reliability of the connection • Complete flexibility in the size and geometric lay out of the protected zone |
||||
 |
||||
|
|
|
|
|

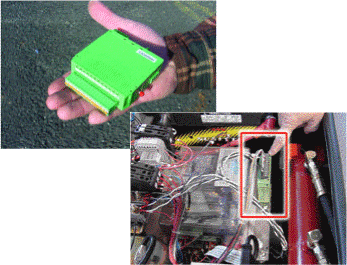

Fail Safe Reliability for Any Failure Mode • Fails safe in the event of loss of power • Fails safe in the event of loss of communication or broken/loose wire or connection • Fails safe in the event of damage to the wheel sensor • Fails safe in the event of a sensor becoming loose or falling off the rail Extremely Compact Size • The Main Module measures 3" x 3" x 1" • The Wheel Sensor/Bracket is 10" x 10" x 6" tall • Attaches to rail sizes 90 lbs. and larger |
||||
 |
||||
|
|
|
|
|
 |
||||||
Designed for Use in Rugged Railroad Environments • Both the Main Module and the Wheel Sensor are totally encapsulated and sealed against contamination and water • Engineered to operate continuously at the shock and vibration levels encountered in rail applications. • Operating temperature range is –40°F to +185°F Maintenance Free • No tuning of the components at startup or at any time during operation • The system automatically compensates for changes in ambient conditions • Activating special operating characteristics is easily accomplished through a laptop comput- er operating in a Windows environment Enhanced Features • Missed wheel compensation • Includes both steady state and pulsed outputs to support “Auto-Line” or other functions • The Main Module will support up to 28 Wheel Sensors • The Wheel Sensors can be located up to 2,000 feet from the Main Module • The Wheel Sensors can be wired in a “daisy chain” fashion greatly simplifying cabling requirements |
||||||
|
|
|
|
|
|
|
